A switchgear essentially consists of switching and protecting devices such as switches, fuses, isolators, circuit breakers, relays, control panels, lightning arrestors, current transformers, potential transformers, and various associated equipment’s.
Some equipment are designed to operate under both normal and abnormal conditions. Some equipment are meant for switching and not sensing the fault.
During normal operation, switchgear permits to switch on or off generators, transmission lines, distributors and other electrical equipment. On the other hand, when a failure (e.g. short circuit) occurs on any part of power system, a heavy current flows through the equipment, threatening damage to the equipment and interruption of service to the customers. However, the switchgear detects the fault and disconnects the unhealthy section from the system.

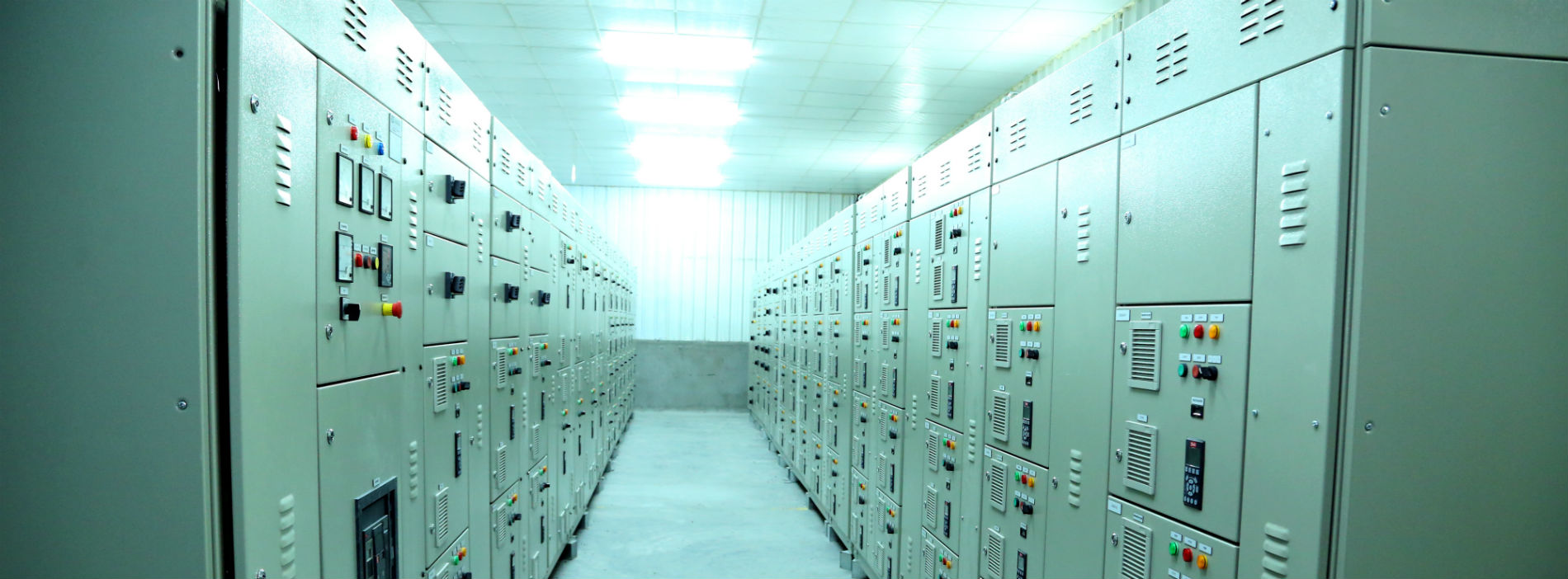

An essential part of the electrical circuitry system at homes, offices or anywhere else, switchgear like circuit breakers, distribution boards, energy savers etc. are used for superior power distribution and power monitoring and control. The team of engineers at SSI have designed and built premium range of panels which is an ideal example flawless machinery at affordable prices.
Switchgear protection plays a vital role in modern power system network, right from generation through transmission to distribution end. The current interruption device or switching device is called circuit breaker in switchgear protection system. The circuit breaker can be operated manually as when required and it is also operated during over current and short circuit or any other faults in the system by sensing the abnormality of system. The circuit breaker senses the faulty condition of system through protection relay and this relay is again actuated by faulty signal normally comes from current transformer or voltage transformer. The switchgear has to perform the function of carrying, making and breaking the normal load current like a switch and it has to perform the function of clearing the fault in addition to that it also has provision of metering and regulating the various parameters of electrical power system. Thus the switchgear includes circuit breaker, current transformer, voltage transformer, protection relay, measuring instrument, electrical switch,electrical fuse, miniature circuit breaker, lightening arrestor or surge arrestor, electrical isolator and other associated equipment.
